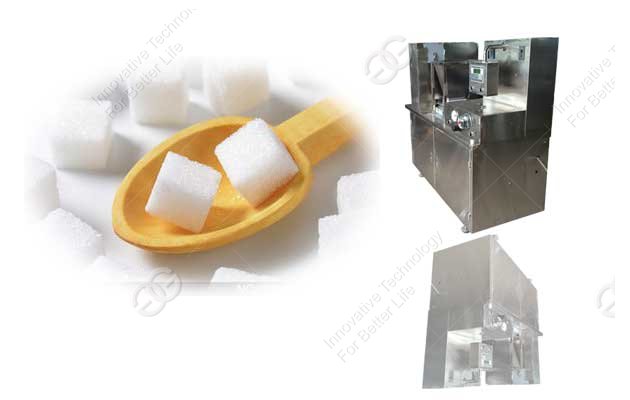

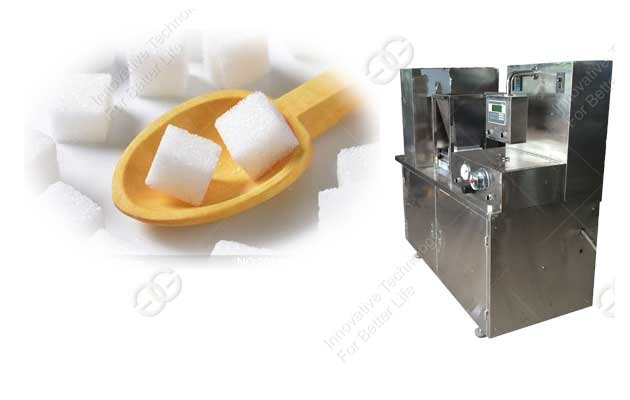

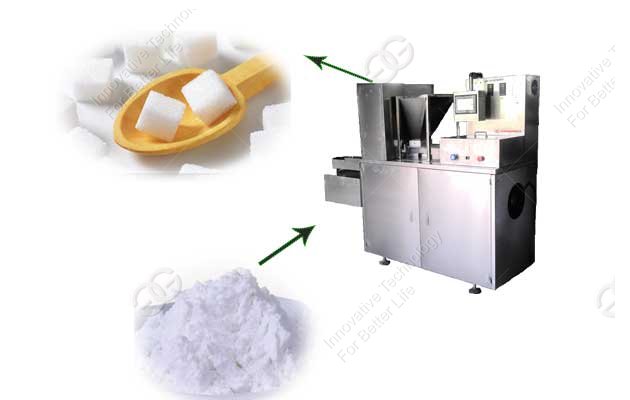

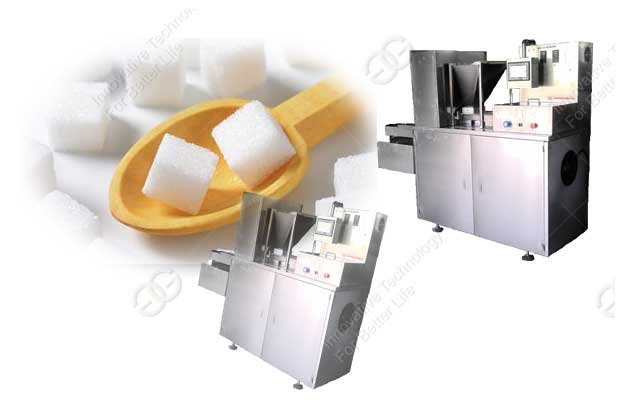

Sugar cube making machine is mainly used to making differentshapes and size sugar.
Sugar cube making machine can achieve automatic rotation, automatic frequency control and continuous briquetting.and the jaggery cube maker machine is mainly applied in the briquetting of sugar with cube shapes. It has two specifications of 16*16*13mm and 16*16*15mm. The equipment is applied in the briquetting of sugar particles with less than 19% water and 100% sugar.
Advantages:
1.We have hydraulic type and pneumatic type cube sugar making machine for your choose.
2.Reliable performance, simple construction stable operation,and long service life.
3.By changing the molds, this machine is able to produce various shape of high quality sugar cube.such as square sugar, heart-shaped sugar and special shape sugar cube.
4.High automatic,stand-alone machine can be controlled separately, simple operation and easy maintenance.
| Model | GGF-80 | GGF-120 | GGF-160 | GGF-200 | ||
| Number of the die holes | 80pcs | 120pcs | 160pcs | 200pcs | ||
| Dimension of the holes | 16*16*13mm (18*18*12mm) Or made-to-measure. | |||||
| Largest output | 200kg/h | 300kg/h | 400kg/h | 500kg/h | ||
| Motor power |
3.0KW 380V/50Hz |
5.5KW 380V/50Hz |
5.5KW 380V/50Hz |
7.5KW 380V/50Hz |
||
| Sugar weight | More than: 4g, 5g, 6g, 7g, 13g etc | |||||
|
Dimension (mm) (L*W*H) |
1500*600*1500 | 1550*620*1500 | 1700*650*1600 | 2000*700*1700 | ||
| Weight | 600kg | 620kg | 660kg | 700kg | ||
