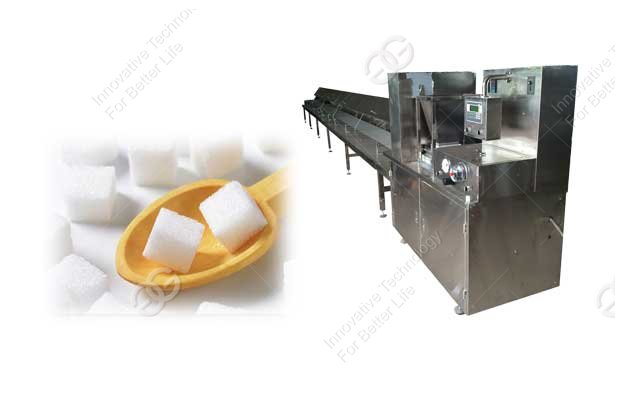

The cubic sugar production line is mainly used to making different specifications sugar.
The cubic sugar production line can achieve automatic rotation, automatic frequency control and continuous briquetting,and the cubic sugar machine have high efficiency and save manpower.
The cubic sugar production line is a machine that automatically delivers sugar, automatically presses down the forming,and continuously presses the block, which is mainly used for the block shape and other shapes.and the cube sugar has different specifications.like 16*16*13mm, 6*16*15mm, 18*18*12 and so on.

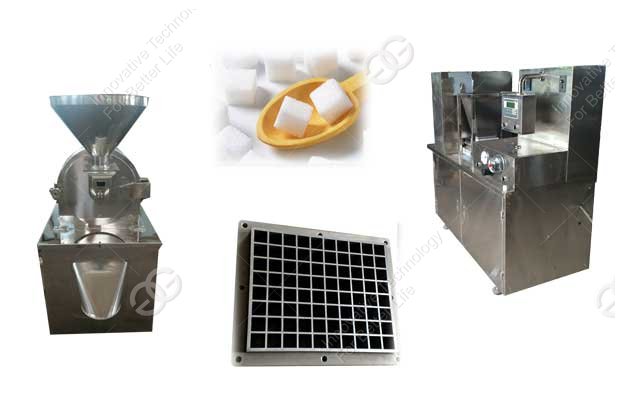

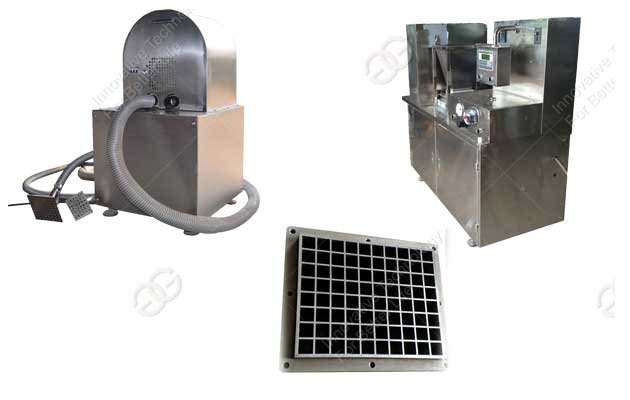

The cubic sugar processing line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.
We also have cube sugar production line.
The cubic sugar processing line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.
We also have cube sugar production line.
| No. | Equipment Name | Detailed Specifications |
| 1 | Sugar Grinder Machine |
GG-100 Capacity:50-100kg/h Feed size: <5mm Grinding fineness:12-150mesh Motor power:2.2kw Dimension:780*750*1500mm Weight:250kg |
| 2 | Mixed Spiral Feeding Machine |
Model: GG-SG Function: mixing and automatic feeding Motor power: 3.85kw Discharge port from the ground: 1700mm Dimension: 500*500*1650mm Weight: 140kg |
| 3 | Sugar Making Machine |
Model: GGF-60 Capacity:60-120kg/h Power:3kw,380V/50Hz Dimension:1200*600*1400mm Weight:800kg PLC control, man-machine interface. |
| 4 | Tablet Linkage Conveyor |
Model: GGS-2 Function: Linkage & Transmission Efficiency: 0-10m3/min Air pressure: 0.3-0.5Mpa Dimension: 1300*700*1000mm Weight: 60kg |
| 5 | Infrared Drying Tunnel |
Model: GGH-3 Efficiency: 0-10m3/min Power: AC380V50Hz 2KW*4 Dimension: 1900*700*1150mm Weight: 90kg*4 |
| 6 | Cooler Machine |
Model: GGQ-1 Function: Cooling Efficiency: 0-10m3/min Dimension: 1900*700*700mm Weight: 60kg |
| 7 | Sugar Packing Machine |
Model: GG-250 Feature: infinite speed variation Rated voltage: 220V/380V 50-60Hz Power: 2.2kw Maximum pressure: 36（43）Kpa Maximum degree of vacuum: 26（31）KPA Table: customized Chuck handle: 2 pcs Dimension: 650*600*950mm Weight: 75kg |
