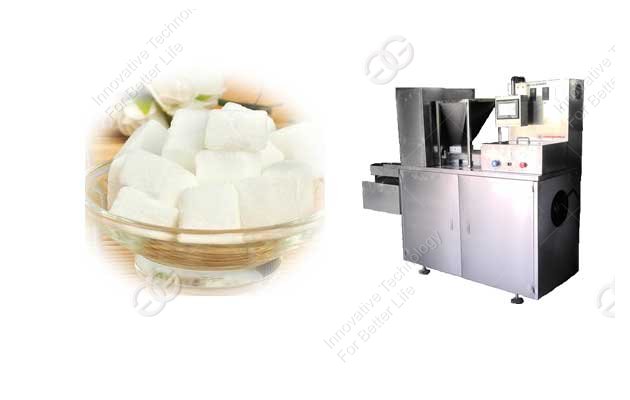

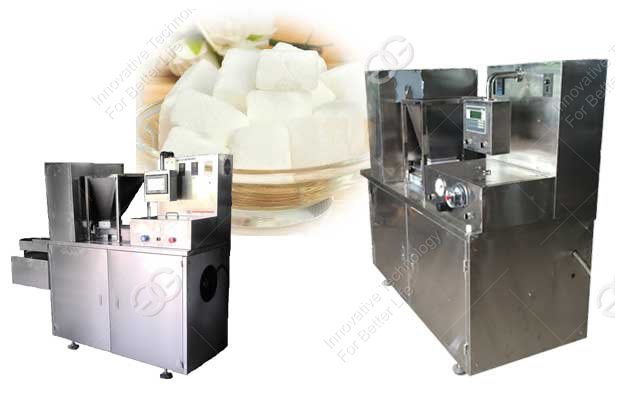

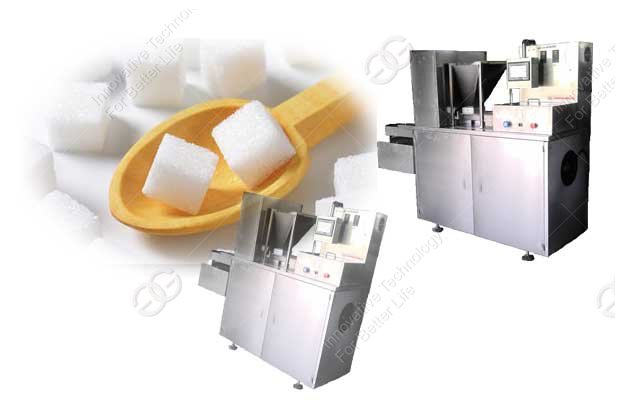

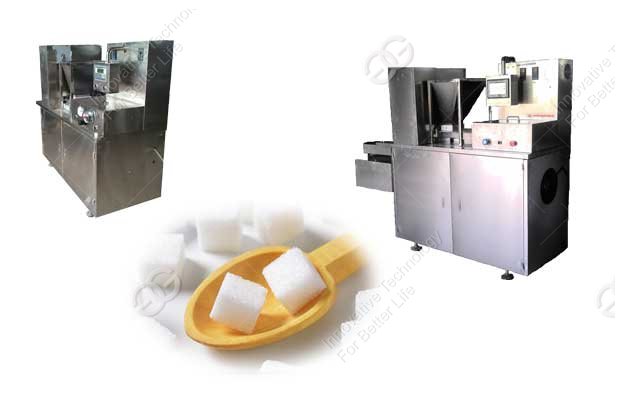

This cube sugar forming machine is one type of equipment that can press to form sugar automatically,send sugar and press into lump continuously,the machine is mainly used in forming square shapes.
the cube sugar forming machine is high efficiency,long service life,easy maintenance,performance and stability.
Process:
Sugar production is the crystal size of granularity appropriate refined sugar, with a small amount of refined sugar concentration solution (or clean water), become wet sugar contained 1.5 2.5% of water, and then made half a square block molding machine, then through dryer to dry the moisture below 0.5%, packaging after cooling.
We also have the stevia cube sugar machine.
We also have the stevia cube sugar machine.
| Model | GGF-80 | GGF-120 | GGF-160 | GGF-200 | ||
| Number of the die holes | 80pcs | 120pcs | 160pcs | 200pcs | ||
| Dimension of the holes | 16*16*13mm (18*18*12mm) Or made-to-measure. | |||||
| Largest output | 200kg/h | 300kg/h | 400kg/h | 500kg/h | ||
| Motor power |
3.0KW 380V/50Hz |
5.5KW 380V/50Hz |
5.5KW 380V/50Hz |
7.5KW 380V/50Hz |
||
| Sugar weight | More than: 4g, 5g, 6g, 7g, 13g etc | |||||
|
Dimension (mm) (L*W*H) |
1500*600*1500 | 1550*620*1500 | 1700*650*1600 | 2000*700*1700 | ||
| Weight | 600kg | 620kg | 660kg |
700kg |
||
